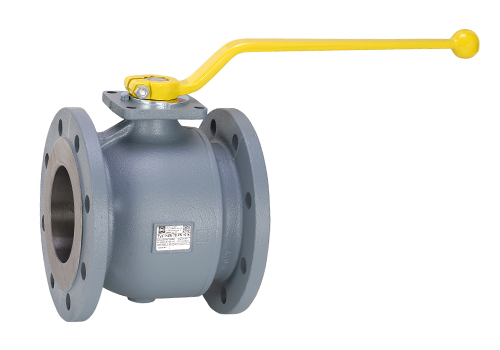

MEDENUS Flanged Ball Valves
Our flanged ball valves consist of a two-piece nodular cast iron body and are in fire-safe design. The floating ball inside the body, which is chambered on three sides, is adjusted with the handle. Optionally, the handle can be replaced by an electric or pneumatic rotary actuator.
Options
- Special paintwork
- Inspection certificate 3.1
- Oxygen version
- Locking device
Features
PS: 16 bar
Ambient temperature: -20 °C to +60 °C
Housing material: Spheroidal graphite iron
Corrosion protection: Primer
Gas specification: Gas families 2, 3 (DVGW - G 260) and non-aggressive gases. Other gases on request.
Flange standard: DIN 1092 - PN 16
Versions PN16 with two-piece housing screwed
| DN 25 | DN 32 | DN 40 | DN 50 | DN 65 | DN 80 | DN 100 | DN 125 | DN 150 |
Versions PN16 with two-piece housing with intermediate flange
| DN 125 | DN 150 | DN 200 |
Joy
MEDENUS is for us not only brand, MEDENUS is an expression of joy in the challenge to do something special for our customers, every day.
Alexander Christiani, CEO
The MEDENUS Add-ons
10 reasons for a good working relationship
Extensive product portfolio: the choice is yours!
Customised solutions and special designs: talk to us!
"DÜSE" design programme: leave nothing to chance!
Shortest delivery times and spare parts: we won't leave you out in the rain!
Certified according to ISO 9001, quality standard products: with us you can be sure!
Special tools? You can service our appliances without them!
Modular design of the devices: be flexible for the most diverse requirements!
100% Made in Germany, 100% hydrogen-ready!
Online service 24/7: documents, maintenance videos, ... around the clock!
Expertise: benefit from our in-house training courses at your premises or training courses at our location!
MEDENUS Gas Ball Valve
Gas ball valves are mainly used to shut off the gas flow in gas trains or gas installations before and after other equipment like gas pressure regulators, gas meters etc.
These ball valves are suitable for all gases according to DVGW G260 / G262 and all other non aggessiven gases (others upon request). They are certified according to DVGW, DIN EN 13774, PED, GAD, CE.
Key Features
- The ball valves are made in two pieces "Screwed" and "full port" design. Body material spheroidal graphite cast iron
- fire safe design
- TA-Luft certified
- floating ball, free of silicone
- face to face length according to DIN558-1 line 14
- grounding 1K water based varnish (other paintings upon request)
